Orifice Flange Definition:
Orifice flange is used to measure the flow rate of the liquids in a piping system,it could be water,gas or other liquids.The orifice flanges are usually used with the orifice plates or meters in the pipe joints.
Form of the Orifice Flange:

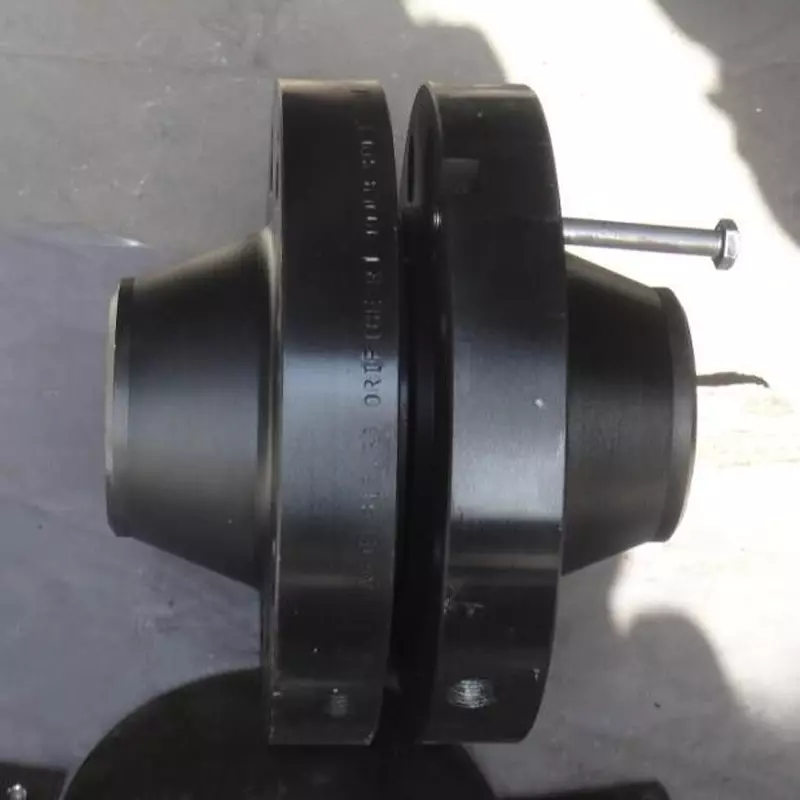

There are two tappings are machined into the two orifice flanges, and the position of the two tappings is opposite, commonly the tappings are sealed by a plug or a bolt. When the orifice flange is installed, the two tappings are used to put the flow rate meter. And commonly there are also one or two jack screw is machined on the orifice flanges, it is used to facilitate separating the flanges joint when inspection or replacement, the jack screw could prevent the damaging of flange sealing faces .
Type of Orifice Flanges:
The Orifice flange could be in many different types, welding neck orifice flanges, slip on orifice flanges or threaded orifice flanges. The sealing face of the orifice flange could be Raised Face(RF) or Ring Type Joing (RTJ)
steel water high pressure pipe class 1500 carbon steel orifice flange
Carbon steel, stainless steel and alloy flanges, are manufactured as per the standards of BS, ANSI, JIS, DIN, and UNI.
Flanges are the connectors used in process piping to connect pipe to tees, elbows, valves, pumps and whatever other equipment may be necessary.
Types: Flat Face Flanges, Slip On, Welding Neck, Blind, Threaded , etc.
Water , Oil, Gas, Industrial Using
Detailed Description
Features:
1) Types:
a) Forged steel flanges
b) Plate cutting flanges
2) Materials:
a) Carbon steel
b) Stainless steel
c) Alloy steel
3) Standards:
a) ANSI, DIN, EN1092-1, NFE, AS, JIS
b) Customers' drawings for special use
4) Sizes we can produce: DN10 to DN3000
5) Types we can supply: WN, SO, BL, plate, thread, socket and other special shapes
6) Kinds of forging:
a) Free forging
b) Die forging
c) Rolling
7) Rustproof treatment:
a) Lightly oiled
b) Galvanized
c) Painting with different colors
d) Just keep the flanges dry and clean as per customers' requirement
8) Inspection:
a) Factory in-house
b) Third party inspection available upon request
9) Different accessories are available
Class1500 weight of flange in KG
| DN |
NPS |
Slip On |
Welding Neck |
Socket Welding |
Threaded |
Lapped |
Blind |
| 15 |
1/2 |
1.74 |
1.87 |
1.76 |
1.74 |
1.7 |
1.77 |
| 20 |
3/4 |
2.34 |
2.58 |
2.37 |
2.35 |
2.29 |
2.42 |
| 25 |
1 |
3.46 |
3.78 |
3.53 |
3.48 |
3.39 |
3.6 |
| 32 |
1 ¼ |
3.98 |
4.42 |
4.06 |
4.01 |
3.87 |
4.21 |
| 40 |
1 ½ |
5.52 |
6.17 |
5.62 |
5.57 |
5.38 |
5.92 |
| 50 |
2 |
9.74 |
11 |
9.96 |
9.8 |
9.49 |
9.95 |
| 65 |
2 ½ |
13.8 |
15.3 |
14.2 |
13.9 |
13.5 |
14.1 |
| 80 |
3 |
-- |
19.9 |
-- |
-- |
19.5 |
18.9 |
| 100 |
4 |
-- |
30.2 |
-- |
-- |
30 |
29.8 |
| 125 |
5 |
-- |
57.8 |
-- |
-- |
57.3 |
58.5 |
| 150 |
6 |
-- |
69.5 |
-- |
-- |
68.8 |
72.2 |
| 200 |
8 |
-- |
119.6 |
-- |
-- |
115.8 |
122.9 |
| 250 |
10 |
-- |
207.5 |
-- |
-- |
200.3 |
211.6 |
| 300 |
12 |
-- |
312.9 |
-- |
-- |
317.9 |
317.3 |
| 350 |
14 |
-- |
413.6 |
-- |
-- |
428.1 |
422.6 |
| 400 |
16 |
-- |
528.3 |
-- |
-- |
551.3 |
577.9 |
| 450 |
18 |
-- |
675.1 |
-- |
-- |
717.8 |
763.3 |
| 500 |
20 |
-- |
860.8 |
-- |
-- |
870.8 |
968.8 |
| 600 |
24 |
-- |
1376.7 |
-- |
-- |
1390.3 |
1562.3 |
