A182 Gr. 304 2 Inch Socket Weld Flanges

MOQ: 100 Meter

Delivery time: 15 Day

Product Details

Product Details:

Place of Origin:	China
Brand Name:	Gangyu Pipeline
Certification:	MTC/COC/ISO
Model Number:	NPS 2

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	negotiable
Packaging Details:	packed in wooden box or pallet
Delivery Time:	10days after received down payment
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	50000pc per month

Product Name:	Stainless Steel Flange	Connection:	Welding Neck
Shape:	Round	Material:	Carbon Steel
Face Type:	RF	Class:	300
Standard:	ASME/GB/EN/JIS/IS	Size:	NPS 2

Socket Weld Pipe Flanges

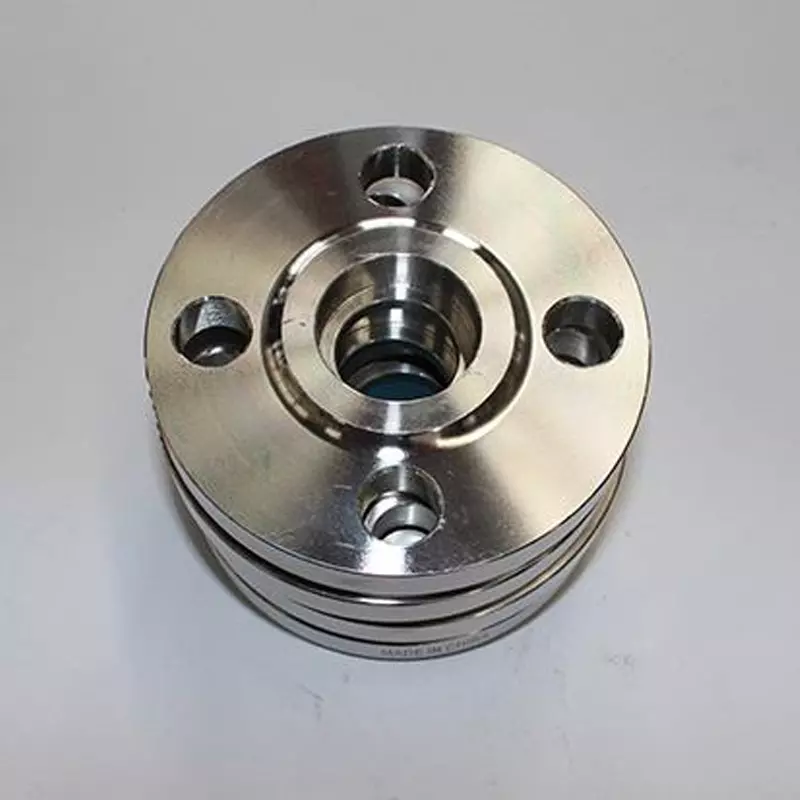

Socket weld pipe flange is like a slip on flange,it is used specially for small sizes piping systems.The shape of a socket welding flange is like a slip on flange with a block in the inner bore of the flange which name is socket.And the socket thickness is common same with the pipe thickness.

Socket Welding Flange with Pipe Connection

The socket welding connection is on kind of pipe end for fillet welding,as we know the welding forged pipe fittings of ANSI /ASME B16.11 are socket welding joint,they are same application with the socket welding flanges,mainly used in small sizes and high pressure piping connection.

Sealing Face of Socket Welding Flange:

Socket weld pipe flanges are commonly supplied with a raised face(RF),flat face(FF).When a raised face is necessary for socket weld pipe flanges,the standard height of the face is 1/16″ when the flanges pressure is less than class400.When socket weld pipe flanges is class 400 and up,the standard socket weld pipe flange raised face height is 1/4″.

The socket welding flange are typically used in hydraulic piping systems and steam distribution lines

A182 Gr. 304 8 Inch Socket Weld Flanges

ANSI B16.5 Butt welding neck flange Class300 (PN50)
NPS	DN	pipe OD	flange OD	hole center to hole center	diam.of holes	NO. of holes	thickness	ID of flange	diam. Of neck	height of flange
1/2"	15	21.3	95	66.7	16	4	12.7	15.5	38	51
3/4"	20	26.9	115	82.6	18	4	14.3	21	48	56
1"	25	33.7	125	88.9	18	4	15.9	27	54	60
1 1/4"	32	42.4	135	98.4	18	4	17.5	35	64	64
1 1/2"	40	48.3	155	114.3	22	4	19.1	41	70	67
2"	50	60.3	165	127	18	8	20.7	52	84	68
2 1/2"	65	76.1	190	149.2	22	8	23.9	66	100	75
3"	80	88.9	210	168.3	22	8	27	77.5	117	78
4"	100	114.3	255	200	22	8	30.2	101.5	146	84
5"	125	139.7	280	235	22	8	33.4	127	178	97
6"	150	168.3	320	269.9	22	12	35	154	206	97
8"	200	219.1	380	330.2	26	12	39.7	203	260	110
10"	250	273	445	387.4	30	16	46.1	255	321	116
12"	300	323.9	520	450.8	33	16	49.3	303.5	375	129
14"	350	355.6	585	514.4	33	20	52.4	as per customers require	425	141
16"	400	406.4	650	571.5	36	20	55.6		483	144
18"	450	457	710	628.6	36	24	58.8		533	157
20"	500	508	775	685.8	36	24	62		587	160
24"	600	610	915	812.8	42	24	68.3		702	167
