Butt Welding Carbon Steel Welding Elbows With Machined Ends

MOQ: 100 Pieces

Delivery time: 15 Day

Product Details

Product Details:

Place of Origin:	China
Brand Name:	Gangyu Pipeline
Certification:	MTC/COC/ISO/SGS
Model Number:	DN100

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	negotiation
Packaging Details:	Packed in wooden pallet
Delivery Time:	10 working days after received your payment
Payment Terms:	T/T, LC, western Union
Supply Ability:	50,000pcs per month

Product Name:	Welding Elbow	Connection:	Butt Welding
Shape:	Round	Material:	Grade B
Degree:	90	Standard:	ASME/GB/EN/JIS/IS
Size:	DN100	Wall Thickness:	12.7mm
Color:	Black

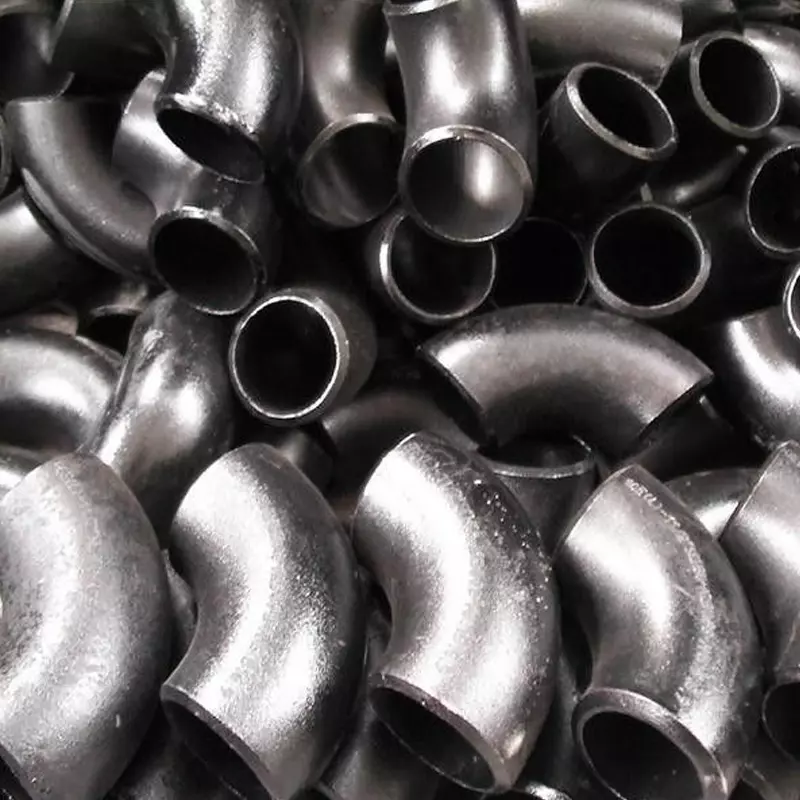

carbon steel welding elbows with machined ends for butt welding

Description:

Each pipe elbow shall be liquid penetrant or magnetic particle inspected in accordance with EN 10246-11 or EN 10246-12. This examination shall be carried out after final heat treatment. Only the side wall areas of the tees shall be examined. This area is defined by a circle which covers the area from the weld bevel of the branch outlet to the centre of the body of run (see Figure 11). Internal and external surfaces shall be examined when size permits accessibility. No cracks shall be permitted. Other imperfections shall be treated in accordance with 10.5 to 10.9. After removal of any imperfections the tee shall be re-examined by the original method. If the manufacturer can demonstrate by testing history (relevant to the particular fitting size) that the results are consistent with the definition of a test unit, then the manufacturer can agree a percentage test with the purchaser provided always that a minimum of 10 % of any test unit is tested ; in the event of a single crack being found on this sample, then 100 % testing is carried out.

Specifications:

nominal diameter		outside diameter		center to end			center to center		back to face
				45°	90° elbow		180° elbow		180° elbow
				elbow	90° elbow		180° elbow		180° elbow
NPS	DN	A series	B series	long redius	long redius	short redius	long redius	short redius	long redius	short redius
1/2	15	21.3	18	16	38	-	76	-	48	-
3/4	20	26.9	25	16	38	-	76	-	51	-
1	25	33.7	32	16	38	25	76	51	56	41
1 1/4	32	42.4	38	20	48	32	95	64	70	52
1 1/2	40	48.3	45	24	57	38	114	76	83	62
2	50	60.3	57	32	76	51	152	102	106	81
2 1/2	65	76.1(73)	76	40	95	61	191	127	132	100
3	80	88.9	88	47	114	76	229	152	159	121
3 1/2	90	101.6	-	55	133	89	267	178	184	140
4	100	114.3	108	63	152	102	305	203	210	159
5	125	139.7	133	79	190	127	381	254	262	197
6	150	168.3	159	95	229	152	457	305	313	273
8	200	219.1	219	126	305	203	610	406	414	313
10	250	273	273	158	381	254	762	508	518	391
12	300	323.9	325	189	457	305	914	610	619	467
14	350	355.6	377	221	533	356	1067	711	711	533
16	400	406.4	426	253	610	406	1219	813	813	610
18	450	457	478	284	686	457	1372	914	914	686
20	500	508	529	316	762	508	1524	1016	1016	762
24	600	610	630	379	914	610	-	-	-	-
28	700	711	720	442	1067	711	-	-	-	-
32	800	813	820	505	1219	813	-	-	-	-
36	900	914	920	568	1372	914	-	-	-	-
40	1000	1016	1020	631	1524	1016	-	-	-	-
44	1100	1118	1120	694	1676	1118	-	-	-	-
48	1200	1219	1220	758	1829	1219	-	-	-	-
52	1300	1320.8	1320	825	1981	1320	-	-	-	-
56	1400	1422.4	1420	888	2134	1420	-	-	-	-

Q: What is your advantage?

A: We are always doing the best to serve customer first.

Provide efficient, time-savine and trustful service. Making quality good and offering competitive price

Q: How to ensure the quality of the goods?

A: Quality management system of our company conform to the Quality Management System Standard: GB/T 19001-2008 / ISO 9001:2008.

Q: What is your terms of payment ?

A: 1. 30% T/T in advance, the balance against the copy of B/L.

2. 100% L/C at sight.

Production Process:

Material Selection: We primarily source raw materials from leading steel mills such as Baosteel, TPCO, Yanbao, Baotou Steel, Changbao, and Huarun. We select tubes with smooth internal/external surfaces, uniform wall thickness, and a preference for higher manganese content to ensure a superior final appearance.
Material Inspection: Incoming materials undergo dimensional checks and chemical composition analysis.
Warehousing: Approved materials are stored in inventory.
Cutting: Tubes are cut to length with sufficient machining allowance. Burrs and metal chips are removed.
Bending & Forming: Tubes are heated using medium-frequency induction heaters and formed via pushing with precision dies. Dies are re-polished every 48 hours of operation to maintain strict dimensional tolerances.
Heat Treatment: Stress relief annealing (tempering) is performed.
End Machining: Bevels are cut on 90-degree CNC lathes to an angle of 37.5° ± 0.25°. The land (flat edge at the end of the bevel) is sized according to the pipe diameter. The land ensures a flush fit for butt welding and prevents burn-through during the TIG root pass.
Visual Inspection: Surfaces are checked for defects like scratches, peeling, or pitting.
Chemical Analysis: Composition is verified using imported handheld spectrometers.
Dimensional Inspection: Checks include outside diameter, wall thickness, ovality, and straightness.
Mechanical Testing: Tests include flattening and flaring to validate performance.
Sandblasting: A fine grit is used to create a uniform surface finish without excessive pitting.
Painting: Surfaces are evenly coated using environmentally friendly spray equipment.
Marking: Legible black background with white lettering is applied using a marking machine.
Packaging: Products are packed in wooden cases or on pallets, secured with steel strapping, and wrapped in plastic film for weather and dust protection.
Shipping: Careful handling using forklifts and overhead cranes ensures secure and orderly loading for transport.

Quality Assurance & Company Profile:

Certifications: ISO 9001 Quality Management System, Environmental Management System, Occupational Health & Safety Assessment Series, AAA Credit Rating, and SGS International Certification.
Quality Control: An integrated international ERP system manages production, supplemented by a secondary manual quality inspection to guarantee a 100% pass rate.
Production Capacity: Annual output of 20,000 tons of pipe fittings.
Facilities & Workforce: 7,000 sqm storage warehouse and a team of 200 employees.
R&D & Customization: A 300 sqm sample room supports our in-house R&D and ODM/ custom manufacturing capabilities.
Service: We offer straightforward cooperation, responsive service, and efficient logistics.
Experience: A decade of expertise in international export.
