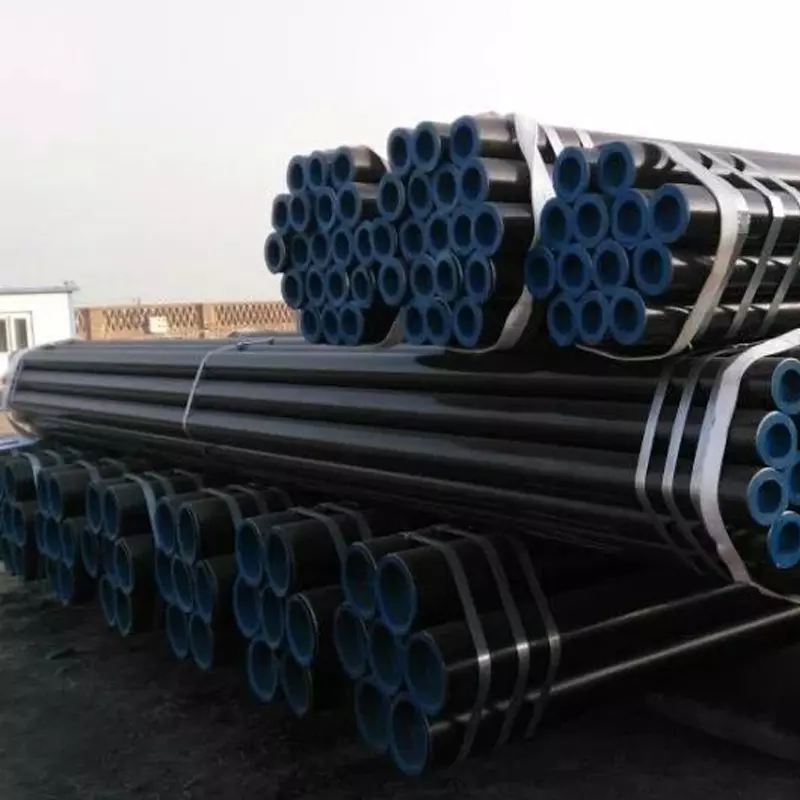

A53 Rust - Proof Seamless Steel Pipe Plain Ends Seamless Mechanical Tubing

MOQ: 100 Meter

Delivery time: 15 Day

Product Details

Product Details:

Place of Origin:	China
Brand Name:	Gangyu Pipeline
Certification:	MTC/COC/ISO
Model Number:	5"

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	negotiable
Packaging Details:	Strapped in bundles
Delivery Time:	10 working days after received your payment
Payment Terms:	L/C, T/T, Western Union, Western Union
Supply Ability:	50,000tons per month

Product Name:	A53 Steel Pipe	Ends:	Plain Ends
Shape:	Round	Material:	Grade B
Techniques:	Hot Rolled	Wall Thickness:	6.55
Standard:	ASME/GB/EN/JIS/IS	Size:	141.3

A53 Rust - Proof Seamless Steel Pipe Plain Ends Seamless Mechanical Tubing

Order information

Pipe ordered under this specification is intended for mechanical and pressure applications and is also accept-able for ordinary uses in steam, water, gas, and air lines. It is suitable for welding, and suitable for forming operations involving coiling, bending, and flanging, subject to the following qualifications:
1. Type F is not intended for flanging.
2. When Types S and E are required for close
coiling or cold bending, Grade A is the preferred grade. This provision is not intended to prohibit the cold bending of Grade B pipe.

3. Type E is furnished either nonexpanded or cold
expanded at the option of the manufacturer.

Nominal	External	ANSI B36.10
diameter	diameter	Nominal diameter in inches
in	in	10		20		30		Standard
inches	millimeters	mm	Kg/m	mm	Kg/m	mm	Kg/m	mm	Kg/m
1/8"	10.29	-	-	-	-	-	-	1.73	0.371
1/4"	13.72	-	-	-	-	-	-	2.24	0.644
3/8"	17.15	-	-	-	-	-	-	2.31	0.858
1/2"	21.34	-	-	-	-	-	-	2.77	1.26
3/4"	26.67	-	-	-	-	-	-	2.87	1.68
1"	33.4	-	-	-	-	-	-	3.36	2.5
11/4"	42.16	-	-	-	-	-	-	3.56	3.38
11/2"	48.26	-	-	-	-	-	-	3.68	4.05
2"	60.33	-	-	-	-	-	-	3.91	5.43
21/2"	73.03	-	-	-	-	-	-	5.16	8.62
3"	88.9	-	-	-	-	-	-	5.49	11.28
31/2"	101.6	-	-	-	-	-	-	5.74	13.56
4"	114.3	-	-	-	-	-	-	6.02	16.06
5"	141.3	-	-	-	-	-	-	6.55	21.76
6"	168.3	-	-	-	-	-	-	7.11	28.23
8"	219.08	-	-	6.35	33.28	7.04	36.8	8.18	42.4
10"	273.05	-	-	6.35	41.7	7.8	51	9.27	60.24
12"	323.85	-	-	6.35	49.68	8.38	65.14	9.52	73.76
14"	355.6	6.35	54.63	7.92	67.98	9.52	81.21	9.52	81.21
16"	406.4	6.35	62.58	7.92	77.9	9.52	93.13	9.52	93.18
18"	457.2	6.35	70.5	7.92	87.8	11.13	122.12	9.52	105.05
20"	508	6.35	78.47	9.52	116.97	12.7	155	9.52	116.97
22"	553.8	6.35	86.42	9.52	128.89	12.7	170.86	9.52	128.89
24"	609.6	6.35	96.215	9.52	140.8	14.7	209.54	9.52	140.81
26"	660.4	7.92	127.58	12.7	202.65	-	-	9.52	152.73
28"	711.6	7.92	137.52	12.7	218.54	15.88	271.94	9.52	164.65
30"	762	7.92	147.45	12.7	234.44	15.88	291.81	9.52	176.57
32"	812.8	7.92	157.39	12.7	250.33	15.88	311.67	9.52	188.5
34"	863.6	7.92	167.32	12.7	266.22	15.88	331.54	9.52	200.42
36"	914.4	7.92	177.26	12.7	282.18	15.88	351.41	9.52	212.34

Specifications:

Steel pipes type	ASME steel seamless pipe
Size	Size 1/4” to 24” Outside Diameter 13.7 mm to 609.6 mm
Standard	API5L , ASTM A106 Gr.B, ASTM A53 Gr.B, ASTM A179/A192/A213/A210 /370/312 WP91, WP11,WP22 GB5310-2009, GB3087-2008,GB6479-2013, GB9948-2013, GB/T8163-2008, GB8162-2008,GB/T17396-2009
Certificates	API5L ISO 9001:2008 TUV SGS BV etc
Wall thickness	SCH10, SCH20, SCH30, STD, SCH40, SCH60, SCH80, SCH100 SCH120, SCH160, XS, XXS
Material	Carbon steel, Alloy steel,Stainless steel
Packaging	Loose package, Packaged in bundles(3Ton Max) , bundled pipes with two slings at the both end for easy loading and discharging, End with Plastic caps
Surface Treatment	Rust-proof black painting
Marking	Standard marking, or according to your request. Marking Method: Spray white paint
End treatment	Under 2 inch plain end. 2 inch and above Beveled.
Pipe Length	Single Random Length and double Random Length. SRL:3M-5.8M DRL:10-11.8M or As clients requested length
Usage/Application	1. Fluid pipe 2. Power Plant 3. Structure pipe 4. High and low pressure Boiler tube 5. Seamless pipe /tube for petroleum cracking 6. Conduit pipe 7. Scaffolding pipe pharmaceutical and ship building etc.
Main Market	Asia, Middle East, Europe, America, Africa, Australia, etc.

Applications :

Architectural/Civil Engineering: Cladding, handrails, door and window fittings, street furniture, structural sections, enforcement bar, lighting columns, lintels, masonry supports.
Transport: Exhaust systems, car trim/grilles, road tankers, ship containers, ships chemical tankers, refuse vehicles.
Chemical/Pharmaceutical: Pressure vessels, process piping.
Oil and gas: Platform accommodation, cable trays, sub-sea pipelines.
Medical: Surgical instruments, surgical implants, food processing.
Food and Drink: Catering equipment, brewing, distilling, food processing.
Water: Water and sewage treatment, water tubing, hot water tanks.
General: Springs, fasteners(bolts, nuts and washers) wire.
