| Product Name: |
Carbon Steel Flange |
Connection: |
Welding Neck |
| Shape: |
Round |
Material: |
Carbon Steel |
| Face Type: |
RF |
Class: |
150 |
| Standard: |
ASME/GB/EN/JIS/IS |
Size: |
1/2-72inch |

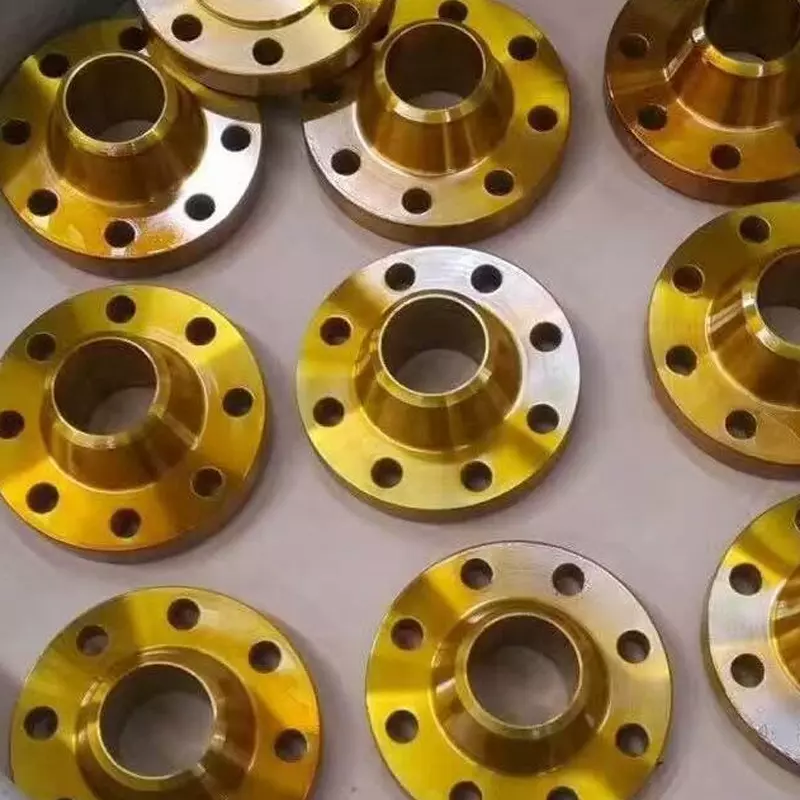

Class 300 Carbon Steel Pipe Flanges , Raised Face Weld Neck Flange ASTM A105
Carbon steel flange after precision processing, soaked in bright yellow paint, dry after plastic film wrapped, packed in wooden case.Resistant to air corrosion and rust.
Quality assurance system:
1. Passed SGS international certification.
2. International ERP production management system, providing secondary manual quality inspection to ensure 100% of product qualification
3. Annual production capacity of 20,000 tons of pipe fittings.
Inventory workshop of 4.7000 square meters, 200 employees
5.300 square meters sample room, independent research and development capacity, ODM to provide customized.
6. Simple cooperation, convenient service and fast logistics.
7.6 years export experience.Provide a complete set of services including painting, marking, packaging, trailer, customs clearance, port and shipping.
|
ANSI B16.5 Butt welding neck flange Class300 (PN50)
|
|
NPS
|
DN
|
pipe OD
|
flange OD
|
hole center to hole center
|
diam.of holes
|
NO. of holes
|
thickness
|
ID of flange
|
diam. Of neck
|
height of flange
|
|
1/2"
|
15
|
21.3
|
95
|
66.7
|
16
|
4
|
12.7
|
15.5
|
38
|
51
|
|
3/4"
|
20
|
26.9
|
115
|
82.6
|
18
|
4
|
14.3
|
21
|
48
|
56
|
|
1"
|
25
|
33.7
|
125
|
88.9
|
18
|
4
|
15.9
|
27
|
54
|
60
|
|
1 1/4"
|
32
|
42.4
|
135
|
98.4
|
18
|
4
|
17.5
|
35
|
64
|
64
|
|
1 1/2"
|
40
|
48.3
|
155
|
114.3
|
22
|
4
|
19.1
|
41
|
70
|
67
|
|
2"
|
50
|
60.3
|
165
|
127
|
18
|
8
|
20.7
|
52
|
84
|
68
|
|
2 1/2"
|
65
|
76.1
|
190
|
149.2
|
22
|
8
|
23.9
|
66
|
100
|
75
|
|
3"
|
80
|
88.9
|
210
|
168.3
|
22
|
8
|
27
|
77.5
|
117
|
78
|
|
4"
|
100
|
114.3
|
255
|
200
|
22
|
8
|
30.2
|
101.5
|
146
|
84
|
|
5"
|
125
|
139.7
|
280
|
235
|
22
|
8
|
33.4
|
127
|
178
|
97
|
|
6"
|
150
|
168.3
|
320
|
269.9
|
22
|
12
|
35
|
154
|
206
|
97
|
|
8"
|
200
|
219.1
|
380
|
330.2
|
26
|
12
|
39.7
|
203
|
260
|
110
|
|
10"
|
250
|
273
|
445
|
387.4
|
30
|
16
|
46.1
|
255
|
321
|
116
|
|
12"
|
300
|
323.9
|
520
|
450.8
|
33
|
16
|
49.3
|
303.5
|
375
|
129
|
|
14"
|
350
|
355.6
|
585
|
514.4
|
33
|
20
|
52.4
|
as per customers require
|
425
|
141
|
|
16"
|
400
|
406.4
|
650
|
571.5
|
36
|
20
|
55.6
|
483
|
144
|
|
18"
|
450
|
457
|
710
|
628.6
|
36
|
24
|
58.8
|
533
|
157
|
|
20"
|
500
|
508
|
775
|
685.8
|
36
|
24
|
62
|
587
|
160
|
|
24"
|
600
|
610
|
915
|
812.8
|
42
|
24
|
68.3
|
702
|
167
|
Advantage description:
PROVIDING ASME / EN / JIS / GB CODE & NON CODE INDUSTRIAL FLANGES FOR:
The Petrochemical, Process, and Waterworks industries. ANSI, API, AWWA pipe flanges in carbon steel , stainless steel , alloys and chrome steel. Weld Neck, Slip on, Blind, Threaded, Socket Weld, Lap Joint, Orifice Flanges, Ring, and custom flanges in sizes 1/2" to 203". Pressure classes - 75, 125, 150, 175, 250, 300, 350, 400, 600, 900, 1500, 2500, 5K, 10K, 15K, 20K. High Yield - Low Temp.
